zui大载重Maximum load capacity（t）

0.8

斗容Bucket rated capacity（m)3

0.3

卸载高度Dumping height（mm)
（at 45°）

1780

zui大举升高度Lifting Height（mm)

3140

卸载距离Dumping Reach（mm)

980

zui大举升力Max. Lifting weight（kg）

600

zui大崛起力Max. Excavation Force（kn)

1000

zui大爬坡度Max. Grade ability

30°

zui大转弯角度Max. Turning Angel

30°±1

后桥摇摆度数Swing degree of the rear axle

7°

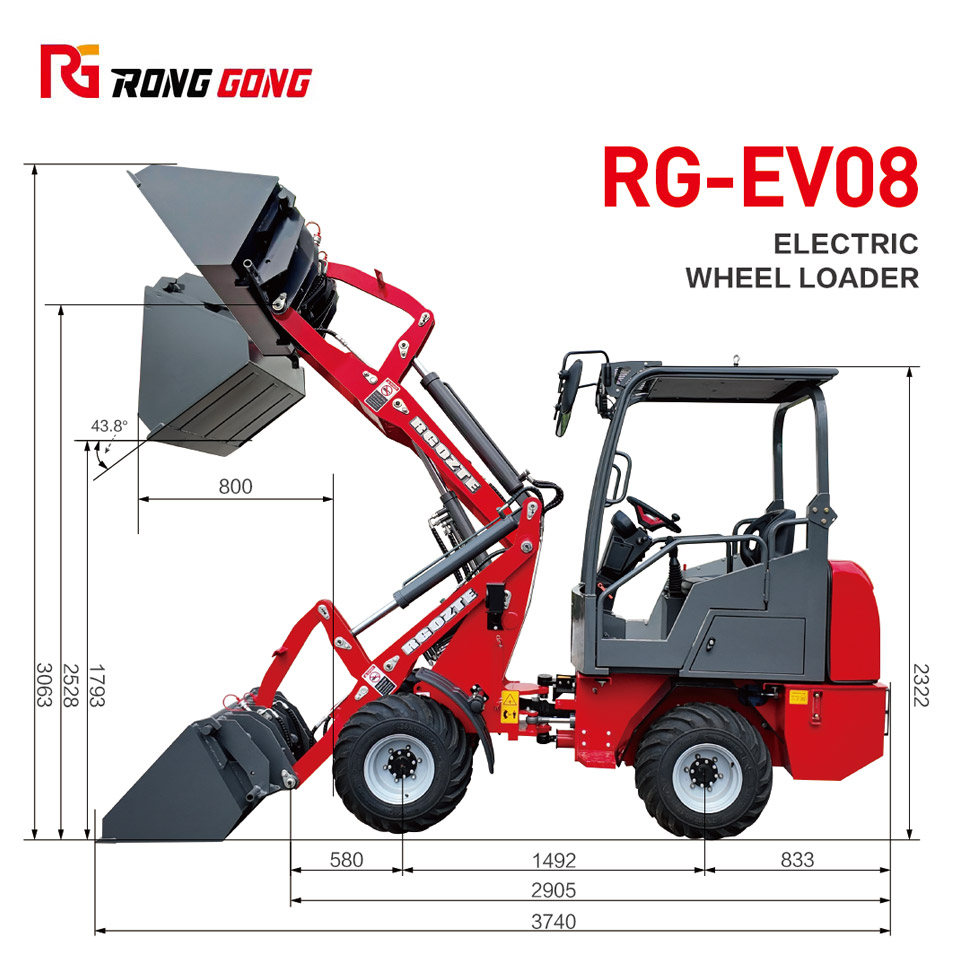

Dimensions. &.Weight

总长Overall length（Bucket on Ground position）mm

3840

斗宽Bucket width（overall width）

1160

高度Overall Height(mm)

2330

轮距Wheel base(mm)

850

zui小离地高度Min Ground Clearance(mm)

240

净重Net Weight（kg)

1980kg

Battery

电瓶型号Battery Model No.

6-EVF-203A

电流rated capacity（3hr)

200Ah

电瓶数No.of battery groups

12

电压Rated Voltage

72V

工作小时Working hours（h）

4-5h

Transmission System

液压系统Hydraulic System

马达型号Motor No.

CBHV

电压Voltage

72V

功率Power

5000W

排量Displacement（ml/r)

18

轮胎Tyres

型号Type

26*1200-12

工作压力working pressure（mpa)

0.3

数量Qty

4

Steering System

转向类型Type of Steering Hydraulic System

全液压转向Full Hydraulic Steering System

系统压力System Pressure（mpa)

16

转向泵Type of Steering Pump

External Gear Pump

转向油缸孔距Steering Cylinder Bore（mm)

63

数量Qty（pc）

1

Braking System

手刹Service Brake

Drum Brake

刹车鼓Brake Drum（mm)

250

制动Parking Brake

Drum Brake

分流阀Distribution Valve

型号Model

DL10

类型Type

Triple valve stem

卸载油缸-孔距Dumping Cylinder-Bore

?80

举升油缸-孔距 Lifting Cylinder-Bore

?63

Oil Capacity

液压油箱容量Hydraulic Oil Tank（L)

30

刹车油油量Brake Fluid（L)

0.8
